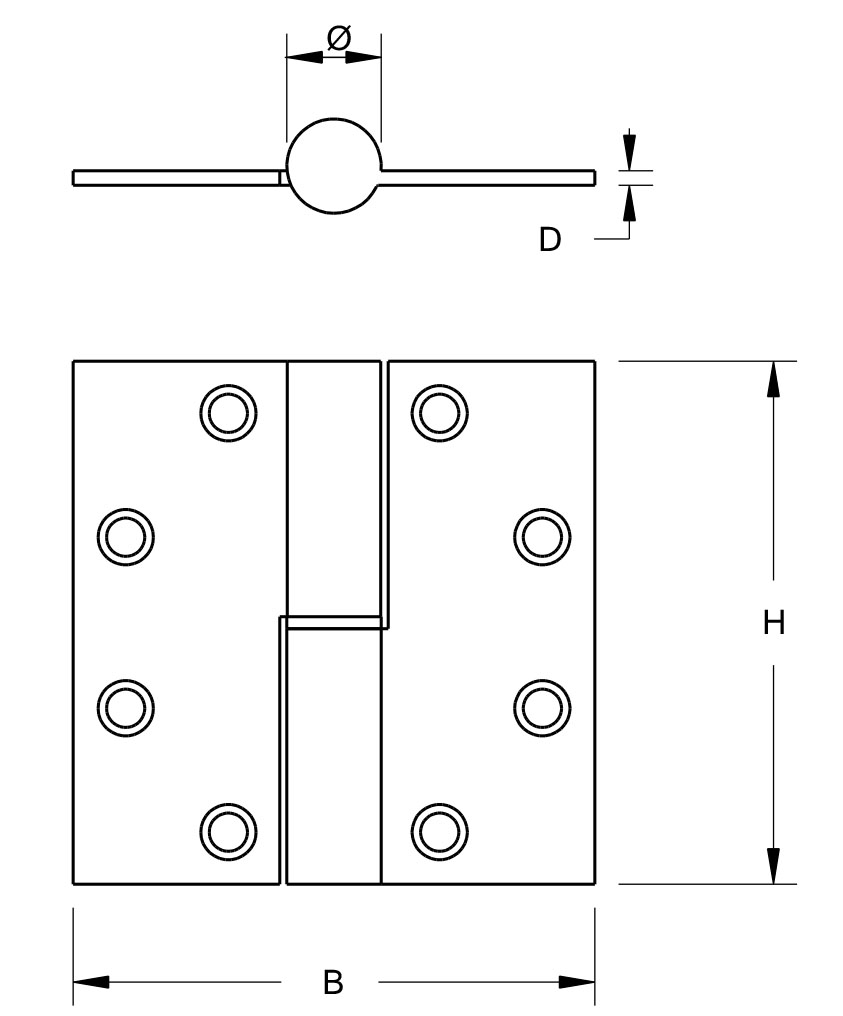

Flag hinges, square corners, steel
Label
H168-76760115
MOQ
6
B (mm)
76
H (mm)
76
D (mm)
3,0
Ø (mm)
16
P (mm)
capacity per 3 (kg)
45
capacity per 4 (kg)
55
direction of rotation
DIN left
Label
H168-76760125
MOQ
6
B (mm)
76
H (mm)
76
D (mm)
3,0
Ø (mm)
16
P (mm)
capacity per 3 (kg)
45
capacity per 4 (kg)
55
direction of rotation
DIN right
| "" | Article | Label | MOQ | B (mm) | H (mm) | D (mm) | Ø (mm) | capacity per 3 (kg) | capacity per 4 (kg) | direction of rotation | Order |
| 6810.115.7676 | H168-76760115 | 6 | 76 | 76 | 3,0 | 16 | 45 | 55 | DIN left | ||
Label H168-76760115 MOQ 6 B (mm) 76 H (mm) 76 D (mm) 3,0 Ø (mm) 16 capacity per 3 (kg) 45 capacity per 4 (kg) 55 direction of rotation DIN left | |||||||||||
| 6810.215.7676 | H168-76760125 | 6 | 76 | 76 | 3,0 | 16 | 45 | 55 | DIN right | ||
Label H168-76760125 MOQ 6 B (mm) 76 H (mm) 76 D (mm) 3,0 Ø (mm) 16 capacity per 3 (kg) 45 capacity per 4 (kg) 55 direction of rotation DIN right | |||||||||||
material
steel
finish
bright zinc plated
corners
square
recommended screw size
4,0 x 40 (76x76), 4,5 x 40 (89x89) mm
application
for exterior doors
EPD Environmental Product Declaration
EPD Environmental Product Declaration
