Flag hinges, square corners, SKG, steel
Label
EXPIRED
MOQ
6
Height leaf [mm]
89
Width [mm]
89
Direction of rotation
DIN left
Knuckle configuration
necked
Length antiburgulary pin [mm]
95
Capacity per 3 [kg]
120
Capacity per 4 [kg]
3.0
Thickness [mm]
16
Diameter knuckle [mm]
Label
EXPIRED
MOQ
6
Height leaf [mm]
89
Width [mm]
89
Direction of rotation
DIN right
Knuckle configuration
necked
Length antiburgulary pin [mm]
95
Capacity per 3 [kg]
120
Capacity per 4 [kg]
3.0
Thickness [mm]
16
Diameter knuckle [mm]

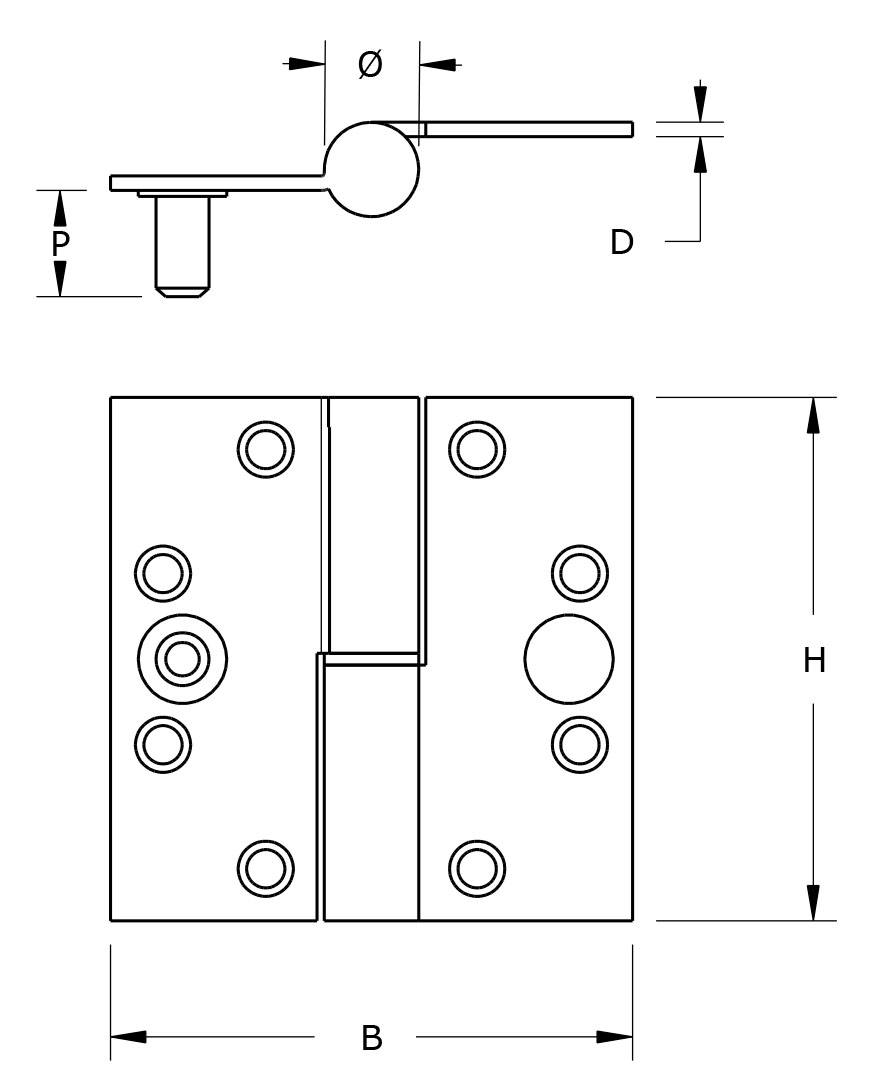

| "" | Article | Label | MOQ | H [mm] | B [mm] | Direction of rotation | Knuckle configuration | P [mm] | Capacity per 3 [kg] | Capacity per 4 [kg] | D [mm] | Order |
| «6812.115.8989-D | EXPIRED | 6 | 89 | 89 | DIN left | necked | 95 | 120 | 3.0 | 16 | ||
Label EXPIRED MOQ 6 H [mm] 89 B [mm] 89 Direction of rotation DIN left Knuckle configuration necked P [mm] 95 Capacity per 3 [kg] 120 Capacity per 4 [kg] 3.0 D [mm] 16 | ||||||||||||
| «6812.215.8989-D | EXPIRED | 6 | 89 | 89 | DIN right | necked | 95 | 120 | 3.0 | 16 | ||
Label EXPIRED MOQ 6 H [mm] 89 B [mm] 89 Direction of rotation DIN right Knuckle configuration necked P [mm] 95 Capacity per 3 [kg] 120 Capacity per 4 [kg] 3.0 D [mm] 16 | ||||||||||||
material
steel
finish
bright zinc plated
corners
square
recommended screw size
4.5 x 45 mm
security rating
SKG***®
application
for exterior doors
Mounting instructions
Mounting instructions
